Description

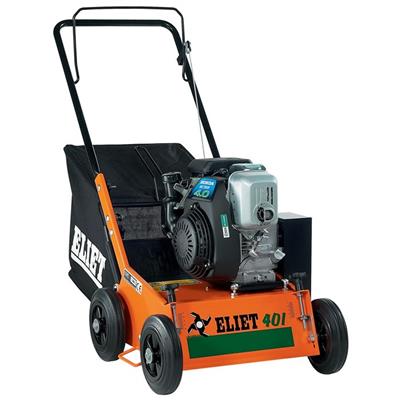

Its working width makes the ELIET E401 ideal for small and medium-sized gardens. Its robust design prevents any wear. As is the case with all other dethatching machines, this one is also armed with a set of ELIET Permanently Sharp Blades™. Thanks to the infinitely variable height adjusters you can select height adjustment with great precision.
Features
ROBUST FRAME
Even though this E401 is the smallest dethatching machine in the ELIET range, it is capable of providing outstanding performance. The performance of this dethatching machine is often tested in many common applications, for example, when it is rented. Its robust construction is then also a guarantee for its durability. The blade shaft is located within a thick steel housing in order to protect bystanders from any flying chippings.
FIXED BLADES
An ELIET dethatching machine with a dethatching width of 40 cm has a rotor that has 14 blades securely fitted. Each blade has two cutting edges so that the blade makes two raking motions for each revolution of the blade shaft. The blades are also mounted in a spiral pattern so that they do not all touch the ground at the same time in order to prevent grass sods from being torn loose. The ELIET E401 thus provides maximum efficiency with minimal damage to the lawn.
LARGE WHEELS
The E401 comes fitted with 20 cm diameter wheels. Large wheels run more smoothly and are less affected by any unevenness in the terrain. The nylon rims are shock-resistant. Moreover, the roller bearings are able to withstand the sandy and dusty conditions that are encountered during dethatching.
INFINITELY VARIABLE FRONT WHEELS
Height adjustment at the front wheels is infinitely variable. Since the height of each front wheel has to be separately adjusted, you are also sure that the blade shaft has the correct depth adjustment across the entire operating width.
REAR WHEELS DEPTH ADJUSTMENT
The rear wheels can be set to a number of different fixed positions. As a result of the dual adjustment capabilities, you can use the blades until they are completely worn.
SPACIOUS COLLECTION BAG
When you perform dethatching efficiently, you are also faced with a lot of cleaning up to do. ELIET help you in this respect by equipping the E401 with a collection bag. The wide opening ensures that the bag is optimally filled. The large 60 litre capacity of this collection bag is ample for the moss from several tens of metres. You are therefore spared from the burden of having to clear up the moss yourself.
RUBBER DEFLECTOR
Even when you work without using a collection bag, the large volume of raked moss must quickly come from underneath the frame without exposing the operator to anything that is thrown up by the blades. The well-sized rubber deflector will catch all of the dust and sand that is thrown up.
VERTICAL BELT TENSION
Problem-free operation was the point of departure for developing the vertical belt tension. Thanks to this system, the belt retains its natural shape even when it is operating. This virtually eliminates wear on the belt, thus significantly extending its operating life.
FOLD-DOWN HANDLEBAR
The handlebar is easily folded down. In this position, the Eliet E401 occupies little space in your garage, storage cupboard or the boot of your car.
Specifications
Technology
THE IMPORTANCE OF POINTED BLADES
During the dethatching work, the blades must grip, rake up and raise the layer of thatch and moss underneath your lawn. The point of the blade plays a crucial role. Many blades lose their edge after a few hours, thus losing their thatch removal ability. As a result, users soon tend to set the blades to penetrate deeper. This, however, has many drawbacks. Dull blades not only fail to cut, they also bring up large quantities of earth and soil, with the resultant increase in machine wear rate. In addition, rooting also suffers irreparable damage.
PERMANENTLY SHARP BLADES™, FOR A RADIANT LAWN
You shouldn’t set the blades to cut deep when you’re dethatching. On the contrary, the trick is to loosen all the moss, felt and other weeds on the surface and lift it out of the lawn. You can then rake or suck it up. Only then can you be sure that all that unwanted material has been removed from your lawn.
That’s the basis of the whole unique Permanently Sharp Blades™ concept. The blades are self-sharpening, so they never lose their gripping force. They may suffer some wear, but they will remain sharp throughout their life.
The PSB™ technology guarantees the same raking efficiency from beginning till end. The Eliet warranty of a permanently good result.
PERFORMANCE
|
| Engine selection |
4,0 HP B&S Series 550 (ECO LINER) |
|
5,0 HP Honda GP160 |
|
4,0 HP Honda GX120 |
| Operating width |
400 mm |
| Permanently sharp blades™ |
Yes |
| Fixed blades (number/thickness) |
14 / 3 mm |
| Loose blades (number/thickness) |
26 / 2,5 mm |
| Double Cut™ blades (number/thickness) |
24 / 1,5 mm |
| Clutch |
Vertical Belt Tension |
| Handlebar |
Foldable |
| Collecting box capacity |
60 L |
| Depth adjuster |
front: Continiously rear: 2-position |
| Chassis |
Steel 2 & 3 mm |
| Transmission |
V-belt |
DESIGN
|
| Weight |
40 kg |
